GMI 10 Mounted in place!

Used the jig to drill the hole and the hole saw to cut through to the other side.. Just placed the piece of plywood marked for drilling the hole, fancy name “jig” and then drilled baby drilled. Glad it is just plywood we are drilling.

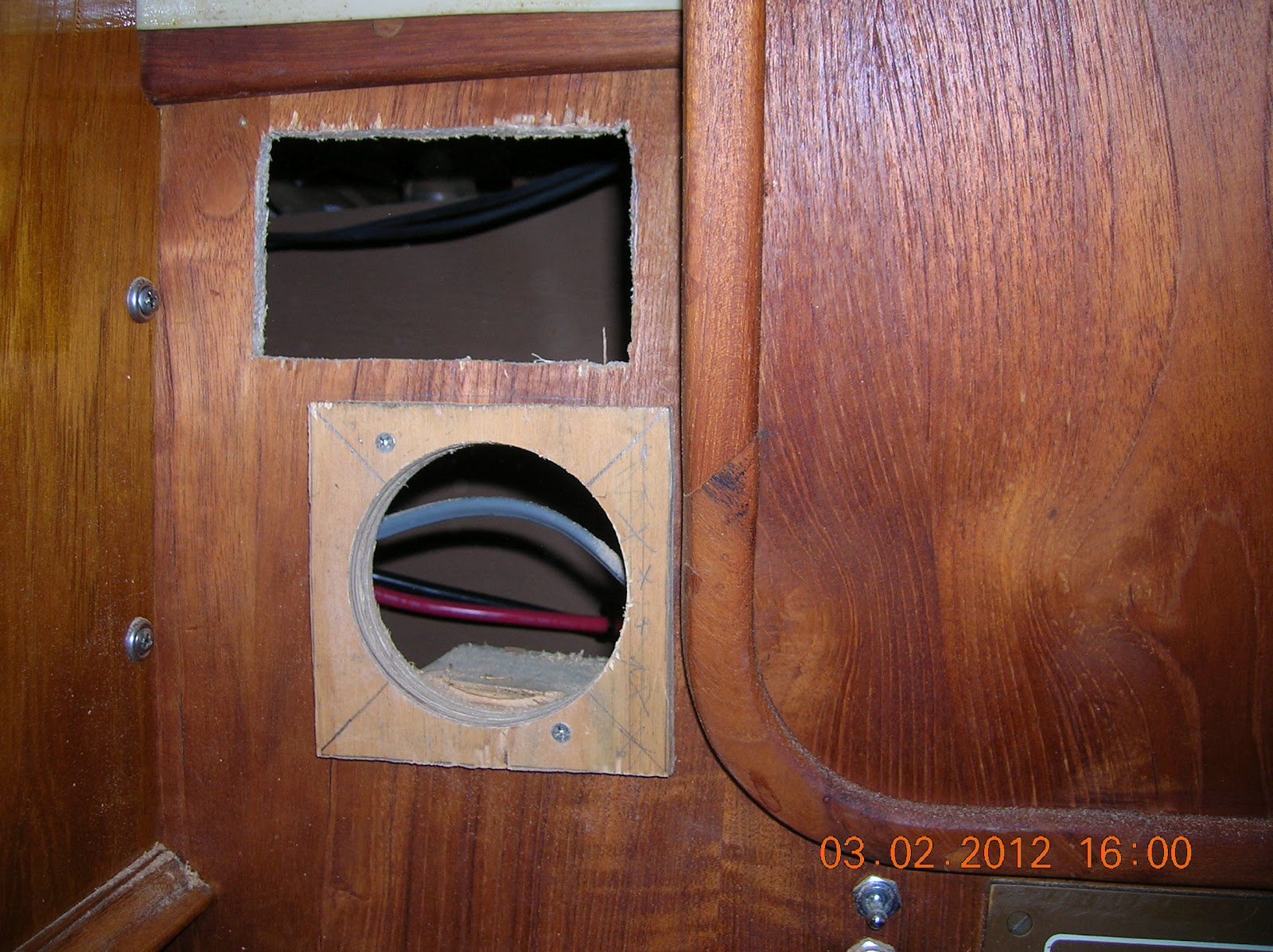

After drilling through the new plywood that plywood held the hole saw in place for sawing into the bulk head.

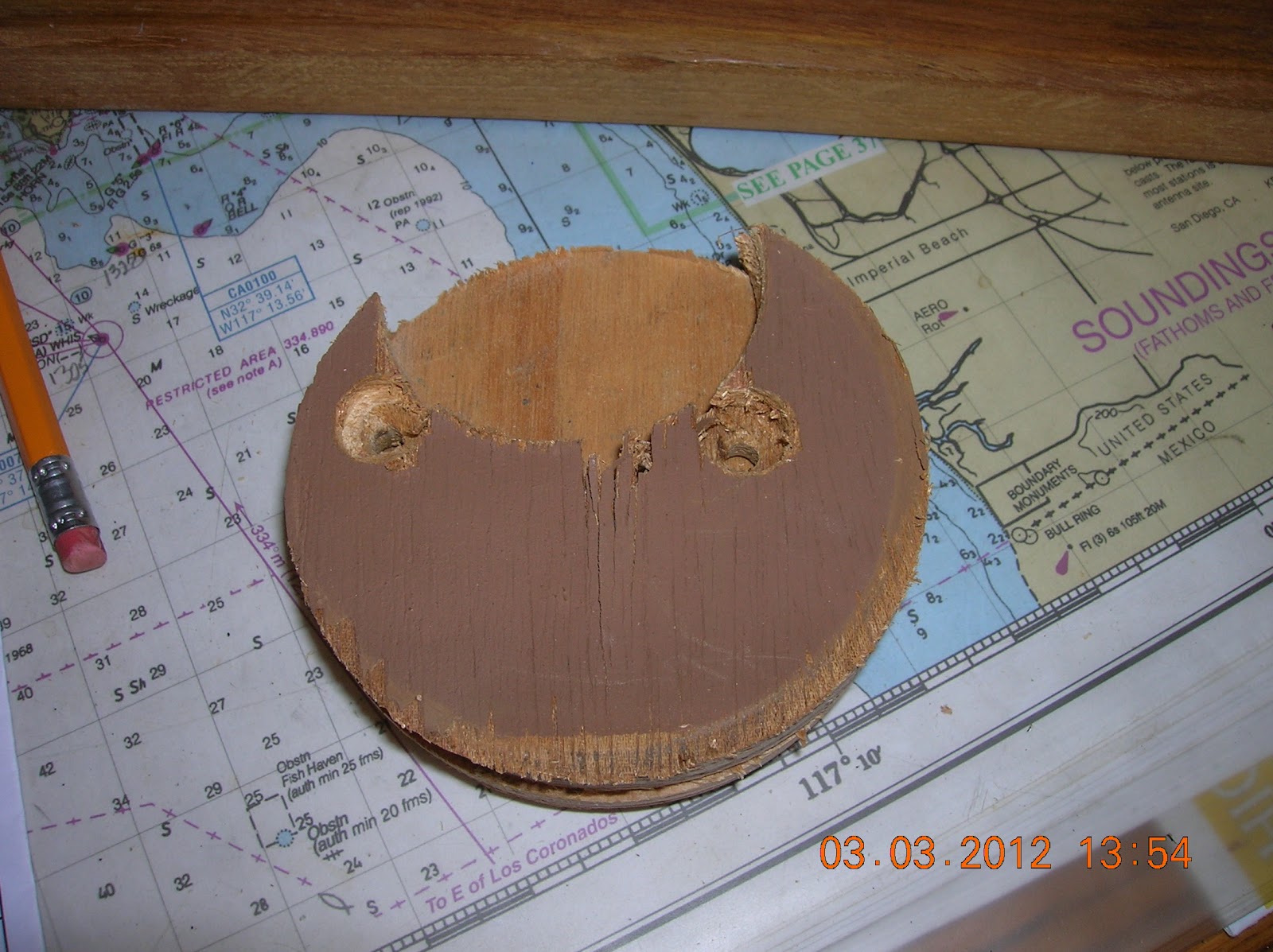

As you can see there was not much room for the drill bit by the original hole.



As you can see there is not much room to work with in-between the two holes.

The spacing is critical so no hole in the bulkhead will show when the gauges are installed.

You can see here how little room we have to work with.

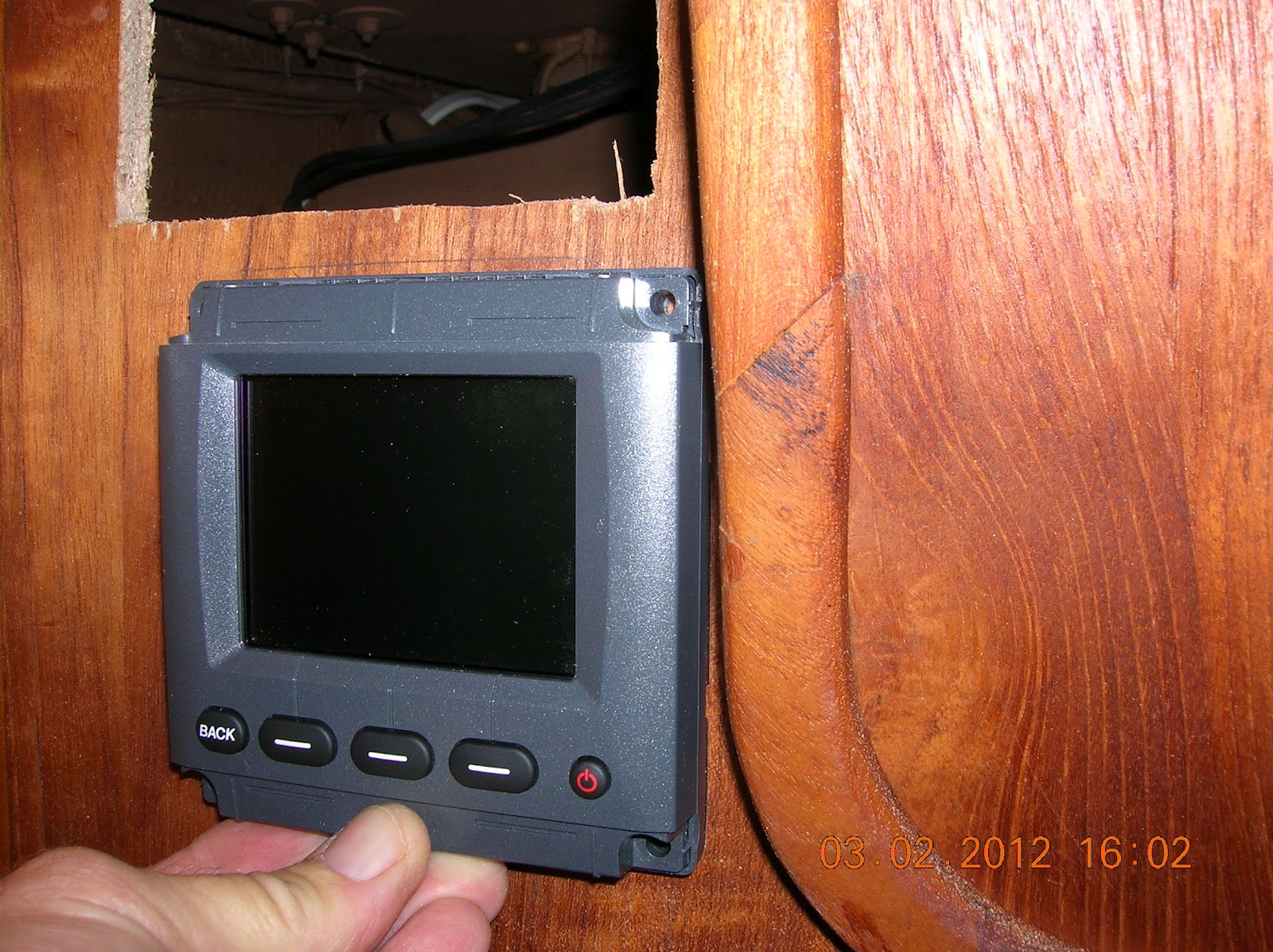

Sitting in-place.

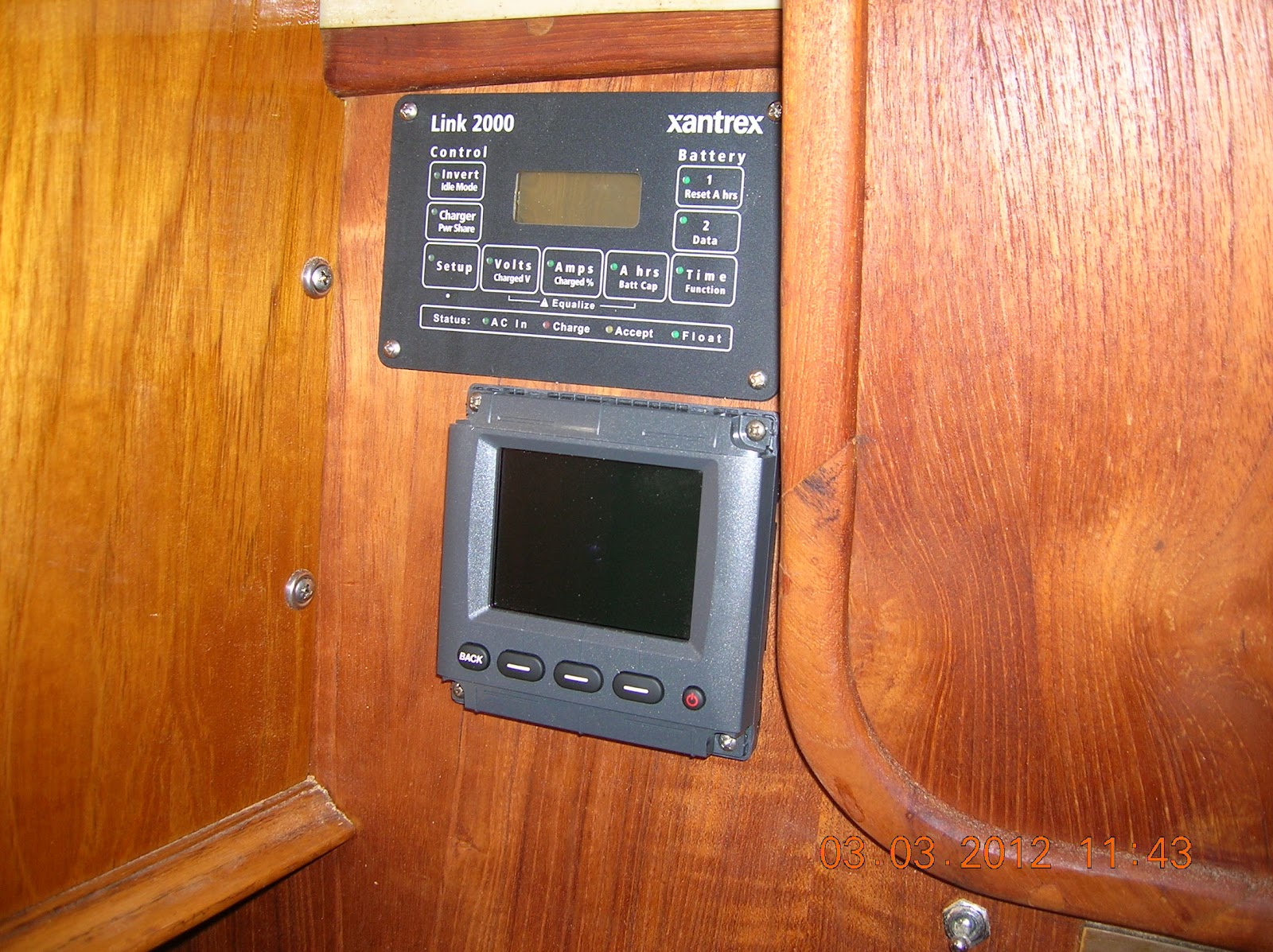

Looking good and evenly spaced.
